Soldering Kit: TouchPad

from 10.00

Transistors are the building blocks for modern electronics and the Touchpad circuit is a great introduction to their basic function.

Quantity:
Quantity:
Add To Cart

Students explore how the transistor can take the small current transmitted through their body to switch on the LED. Once soldered, the circuit functions as a touch activated light.

What's included:

Touchpad switches-07.png

How does Touchpad work?

Touching both touch pads opens a low side NPN transistor switch circuit that turns on the LED.

What does the circuit look like?

Touchpad switches-06.png

Soldering Instructions:

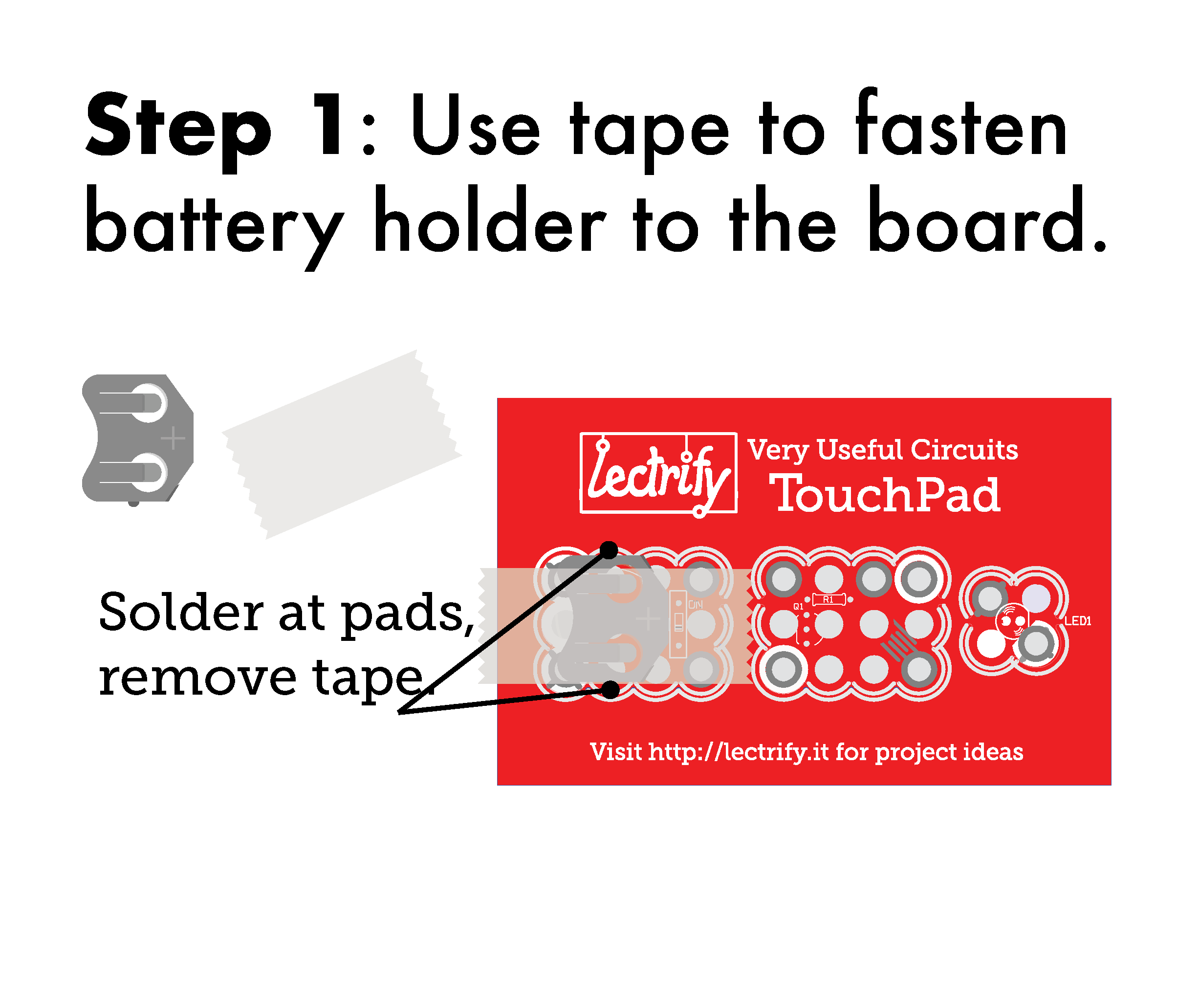

Touchpad soldering steps-08.png
Touchpad soldering steps-09.png
Touchpad soldering steps-10.png

Instructional Video:

Project Ideas:

Touchpad is also available as pre-soldered kit
